Mill roll

Mill roll are indispensable core components in modern cold rolling processes. Their performance directly determines the quality, precision, and production cost of the final product—whether it’s high-strength steel sheets for automobiles, premium panels for home appliances, or ultra-thin tinplate and aluminum foil. Unlike hot rolling, cold rolling is performed below the metal’s recrystallization temperature, enabling products to achieve superior surface finish, strict dimensional tolerances, and enhanced mechanical properties through work hardening. However, this process imposes near-stringent demands on the rolls: they must withstand extremely high rolling forces while maintaining superior surface hardness to resist wear and possessing excellent fatigue resistance to endure cyclic stresses.

Here provides an in-depth exploration of the materials science, manufacturing processes, performance characterization, and cutting-edge maintenance and optimization technologies for cold rolling mill rolls, aiming to serve as a comprehensive technical reference for professionals in the metallurgical industry.

Quick View

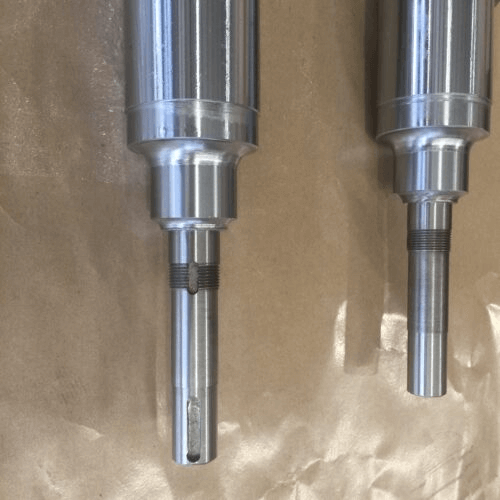

Mill roll

Mill Roll for cold rolling mills in Metallurgical industry

Keywords: Cold rolling mill rolls, High-carbon chromium steel, Dual-frequency induction hardening, Roll maintenance, Digital rolling optimization

2. The Core of the Process: Roll Materials and Key Properties

In a typical cold rolling mill stand, the work rolls are the smaller-diameter rolls that directly contact and deform the strip. They are supported by larger backup rolls which provide the necessary rigidity to prevent excessive bending under the immense rolling forces.

2.1 Chemical Composition and Alloy Design

The material of choice for high-performance cold work rolls is forged alloy steel. A typical high-carbon, high-chromium alloy steel composition is engineered for the role:

Typical Chemical Composition (wt%):

C (Carbon): 0.7%-1.0%: The primary hardening element. It forms hard carbides for wear resistance.
Cr (Chromium): 1.5%-2.5%: The most critical alloying element. It dramatically increases hardenability and forms durable chromium-carbides.
Mo (Molybdenum): 0.1%-0.3%: Enhances hardenability and improves the steel's resistance to tempering.
V (Vanadium): 0.05%-0.2%: A strong carbide former that helps refine the grain structure, improving toughness and wear resistance.
Si, Mn: Balanced amounts

2.2 Key Performance Requirements

The harsh service conditions translate into several non-negotiable performance requirements: High Surface Hardness, Exceptional Wear Resistance, High Fatigue Strength and Toughness, and Consistent Microstructure.

The specific hardness requirements vary by roll type:

Roll Type / Application Typical Hardness Range Primary Function & Notes Cold Tandem Mill Work Rolls 90-95 HSD Primary deformation tool. Balances wear resistance and toughness. Temper / Skin Pass Mill Rolls 95-100+ HSD Final light reduction to improve flatness and surface texture. Foil Mill / 6-High Mill Work Rolls 61-64 HRC For rolling ultra-thin products. Requires extreme hardness and mirror finish. Intermediate Rolls (6-High Mills) 70-85 HSD Provides additional support and control over work roll bending. Backup / Support Rolls 60-65 HSD Designed for strength and stiffness to support work rolls.

3. From Forging to Finishing: The Manufacturing Process Chain

The creation of a premium cold rolling roll is a multi-stage process where metallurgy and precision engineering intersect.

3.1 Key Manufacturing Stages:

Melting & Forging
Begins with electric arc furnace melting, often followed by secondary refining (LF or VD). The ingot is then forged under immense pressure to break down the as-cast structure and create a homogeneous microstructure.
Heat Treatment
The transformative stage that imparts the required mechanical properties.
- Austenitizing: Heating to transform microstructure to austenite.
- Quenching: Rapid cooling to create a hard martensite surface layer.
- Tempering: Reheating to relieve stress and improve toughness.
Final Machining & Testing
The roll undergoes precision grinding. Strict Non-Destructive Testing (NDT) follows.
- Ultrasonic testing for internal flaws.
- Magnetic particle or eddy current inspection for surface cracks.
- Hardness mapping across the barrel and cheeks.

4. Advanced Technologies and Operational Integration

4.1 Roll Contour and Bending Control

Advanced mills employ systems to dynamically control the shape of the roll gap:

Roll Bending: Hydraulic force applied to roll chocks to induce controlled bending, countering deflection.
CVC® and SmartCrown®: Use S-shaped rolls. Axial shifting changes the gap contour for precise strip shape control.

4.2 Roll Maintenance and Management

A disciplined roll shop practice is vital for cost-effectiveness:

Scheduled Regrinding: Rolls are removed after a set tonnage/time to remove surface fatigue layers.
Condition Monitoring: Tracking the history of each roll for optimized scheduling and failure prevention.

5. Conclusion

Cold rolling mill rolls are a masterpiece of metallurgical and manufacturing expertise. Their continuous evolution is tied to demands for higher-strength materials and tighter tolerances.

The future points toward increased intelligence and integration, including rolls with more durable microstructures and integrated sensors for real-time monitoring. The goal is to move toward predictive, condition-based management to optimize the component's life cycle.
