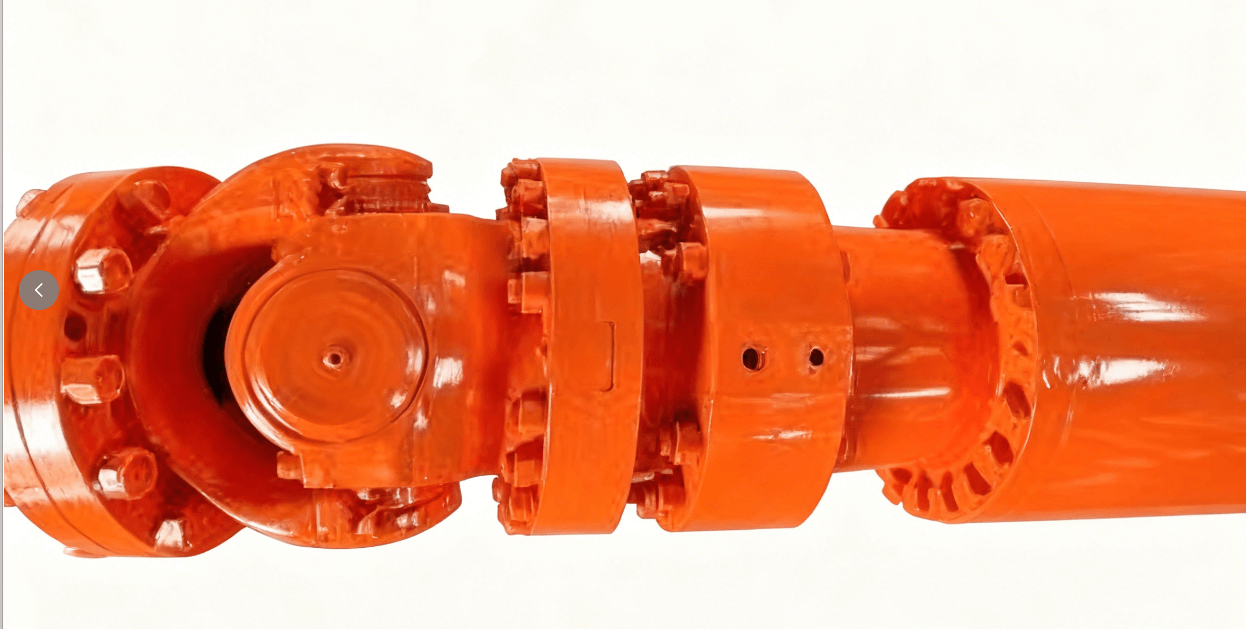

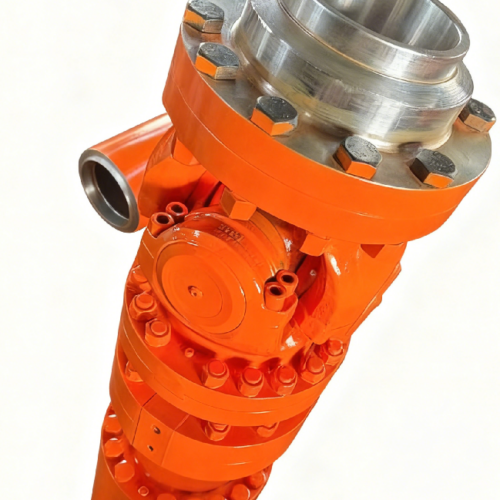

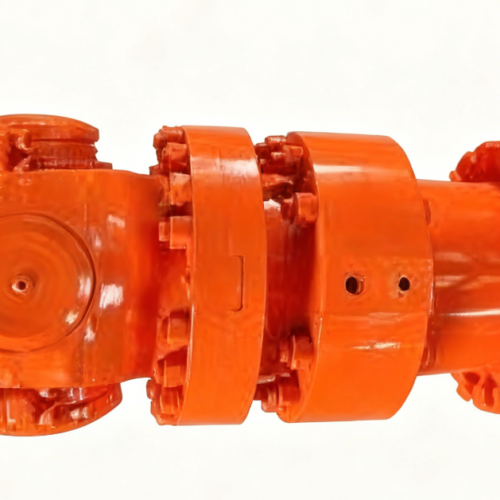

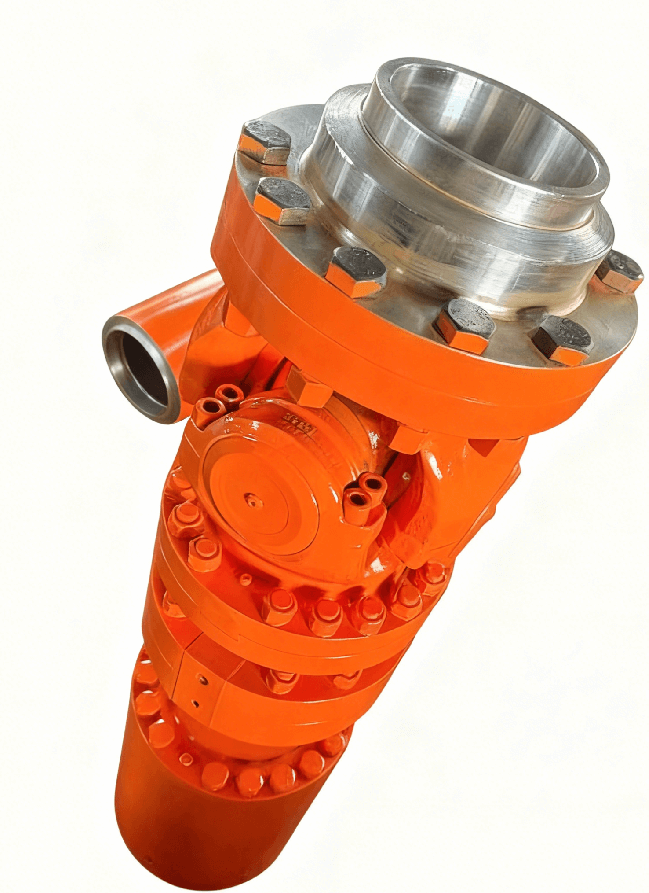

Heavy-Duty Universal Joints for Metallurgical Industry | High-Torque Drive Solutions
In a metallurgical plant, where extreme loads, high temperatures, and continuous operation are the norm, the failure of a single drive component is not an option. It leads to unplanned downtime, catastrophic production losses, and exorbitant repair costs. The universal joint, a pivotal link in your drivetrains, must be more than just a connector; it must be a paragon of reliability.
Our high-strength universal joints are specifically engineered to withstand the punishing conditions of metallurgical applications, from continuous casters and rolling mills to heavy-duty conveyors.
1.Application of Heavy-Duty Universal Joints
Engineered for Rolling Mills, Continuous Casters & Extreme Loads. Maximize Uptime & Minimize Cost.
a) Defying Extreme Loads & Shock Impacts: Material Integrity
Core Material: We utilize 42CrMo / 40CrNiMoA-grade ultra-high-strength alloy steel for the yoke and cross trunnion. Superior to standard 40Cr, these grades offer exceptional impact toughness (AKU) and high-temperature strength, ensuring integrity under the massive shock loads and alternating stresses of mill operations.
Enhancement Processes:
Full Quenching and Tempering: Guarantees a core yield strength (Rp0.2) of ≥850 MPa, providing immense resistance to deformation.
Deep Case Hardening: The cross trunnions undergo medium-frequency induction deep hardening, achieving a case depth of 3-5mm—significantly deeper than standard products. Surface hardness is consistently maintained at HRC 58-62, providing superior resistance to plastic deformation and abrasive wear, even under sustained peak loads.
b) Ensuring Durability in High-Temperature & Contaminated Environments
High-Temperature Resilience: All seals are made from Fluoroelastomer (FKM), capable of long-term operation in ambient temperatures from -20°C to +200°C, with short-term peak tolerance of 230°C. This prevents seal degradation near furnaces or hot workpieces.
Advanced Sealing System: Our multi-stage labyrinth structure combined with a special FKM composite lip seal effectively blocks ingress of abrasive, metal-laden oxide dust and coolant. Its unique pressure-balancing design also prevents the expulsion of grease under high thermal cycling.
c) Delivering Precise & Smooth Power Transmission
Precision Manufacturing: Cross trunnions are precision-ground and polished to a roundness error of ≤0.005mm and a surface roughness of Ra ≤ 0.2μm. This ensures perfect fitment with needle roller bearings, minimizing backlash and ensuring smooth power transfer.
High-Speed Balancing: For high-RPM applications (e.g., high-speed wire rod mills), we offer dynamic balancing to G6.3 grade or higher, drastically reducing vibration and protecting connected equipment like motors and gearboxes.
2. Typical Applications & Performance Validation of Heavy-Duty Universal Joints
Our universal joints are proven in the most demanding positions:
Steel Rolling Mills: Backup roll and work roll drive spindles, subject to extreme rolling torques and shock loads.
Continuous Casters: Segment drives and oscillator systems, requiring precision and uninterrupted operation.
Heavy Transfer Tables: Operating in environments characterized by heat, heavy loads, and frequent start-stop cycles.
Performance Validation Data:
In a 30,000-hour continuous operation tracking test on the universal spindle of a hot strip mill’s finishing stand, our product demonstrated a cross trunnion wear of only 0.08mm, far below the client’s replacement threshold of 0.25mm. This resulted in extended service life and near-zero unplanned downtime.
3. Our Value Proposition of Heavy-Duty Universal Joints: From Component Supplier to Reliability Partner
We understand that “Mean Time Between Failures” (MTBF) is your key metric. We provide not just a universal joint, but a comprehensive driveline reliability solution rooted in material science, heat treatment expertise, and mechanical design.
