Scale Breaker Equipped Push-Pull Pickling Line for Medium-Width Strips (800–1,350 mm)
——Superior Flatness and Scale Removal from China’s Leading Supplier
- Introduction and Product Specifications of Scale Breaker
For steel producers and service centers handling medium-width hot‑rolled coils, the push‑pull pickling line offers an ideal balance of flexibility, performance, and capital efficiency. Designed for strip widths of 800–1,350 mm and thicknesses of 1.5–4.0 mm, this line processes individual coils without welding, enabling rapid grade and dimension changes – a critical advantage for mills serving diverse end‑markets. With process speeds up to 180 m/min and annual capacities reaching 750,000 tons, it rivals continuous lines in throughput while requiring significantly lower investment.

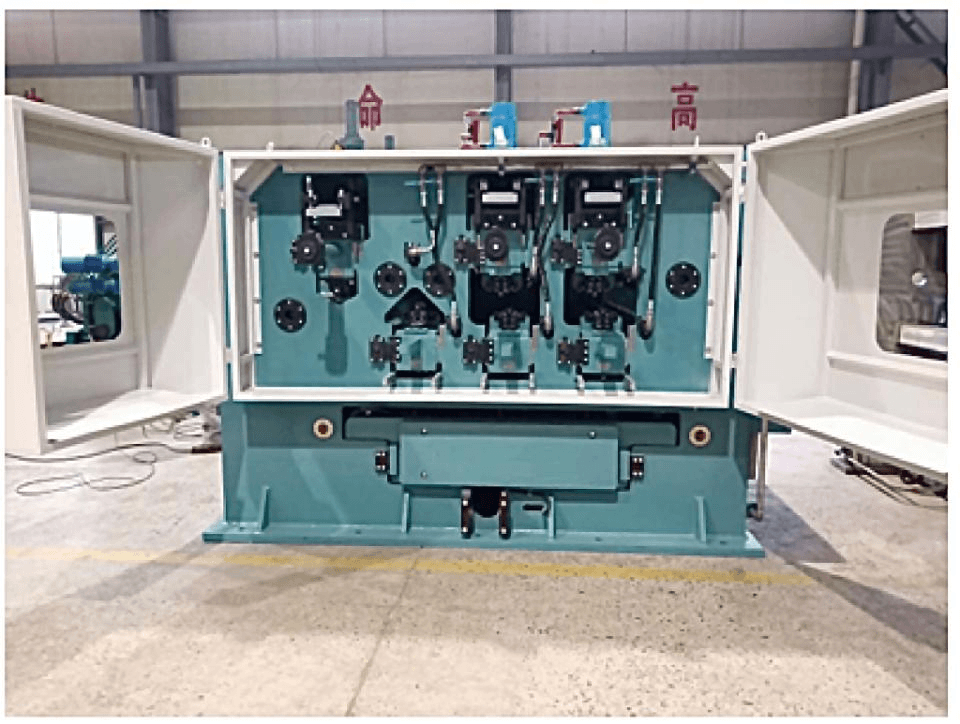

At the heart of this line lies the Scale breaker– a precision device that does more than flatten strip. Installed immediately before the acid tanks, it fractures the brittle mill scale and corrects shape defects in one pass. This dual action ensures faster pickling, reduced acid consumption, and a perfectly flat strip ready for cold rolling, galvanizing, or coating. Ascon One Engineering Co., Ltd., a professional China‑based manufacturer, has supplied Tension Levelers for numerous pickling, galvanizing, and color‑coating lines worldwide, backed by the trade expertise of Yiwu Winnor Trade Company.
- The Scale Breaker– Dual‑Action Technology for Scale Breaking and Shape Correction
A scale breaker operates by subjecting the strip to controlled tension and alternating bending forces, causing plastic elongation of up to 7%. This mechanical action performs two essential functions:
- Scale Breaking – The bending stresses crack the iron oxide layer, allowing acid to penetrate and dissolve scale uniformly. Research confirms that pickling efficiency is maximised when elongation does not exceed 7% on a tension‑leveler‑type scale breaker.
- Shape Correction – The leveling process eliminates edge waves, centre waves, buckles, warping, and camber, redistributing internal stresses to achieve flatness below 5 IU.

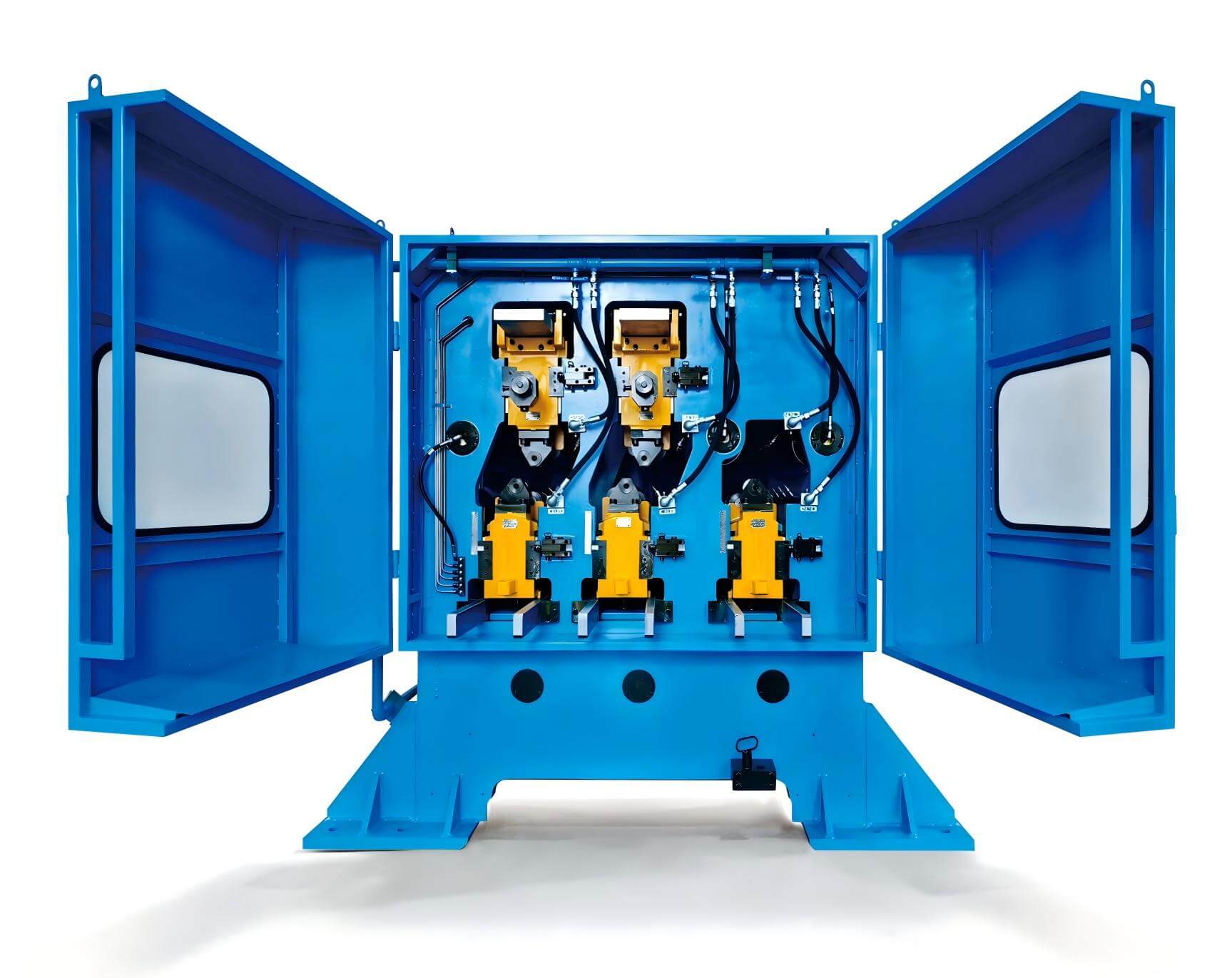

Common configurations include two‑bend one‑level and two‑bend two‑level designs. For the 800–1,350 mm width range, the tension‑leveler scale breaker variant is the industry standard. It not only enhances pickling speed but also prevents strip wandering, ensuring stable operation and consistent quality from coil to coil.
- Applications Across Industries – From Automotive to Construction
The pickled and leveled strip produced by this line serves as premium feedstock for multiple downstream processes:
- Cold Rolling – Flat, scale‑free strip reduces roll wear and delivers consistent gauge and surface finish in tandem mills.
- Hot‑dip Galvanizing – Uniform flatness ensures even coating adhesion, critical for automotive and construction grades.
- Pipe and Tube – Clean, shape‑correct strip improves weld quality and dimensional accuracy.
- Service Centres – Flexible coil‑by‑coil processing enables just‑in‑time inventory management for diverse customer orders.
In emerging markets – particularly Africa, Southeast Asia, and South America – this line has become the go‑to solution for mills upgrading from basic hot rolling to value‑added processing. Ascon One Engineering Co., Ltd. has delivered custom‑engineered Tension Levelers that handle high‑strength low‑alloy (HSLA) grades, adapting roll materials and control systems to local conditions.
- Manufacturing Excellence and Customization – From Factory to Your Line
The manufacturing process at Asconone follows rigorous quality protocols:
- Frame Fabrication – Components are stress‑relief annealed individually to eliminate residual stress, preventing long‑term deformation.
- Roll Production – Work rolls and backup rolls are precision‑ground from wear‑resistant materials, with hardness and roughness verified to specification.
- Assembly & Testing – Each Tension Leveler undergoes full‑load simulation to validate elongation accuracy and tension stability before shipment.
Beyond standard models, the company offers extensive custom services:
- Roll geometry modifications for specific steel grades (thickness 1.5–4.0 mm, strength up to 1200 MPa)
- Control system integration with existing line PLCs (Siemens, ABB, etc.)
- Dimension adjustments to fit tight footprints
- Optional wet‑type levelers for stainless steel processing
Export packaging includes anti‑rust coating and wooden crating, ensuring safe ocean freight. Yiwu Winnor Trade Company coordinates logistics and documentation, simplifying the import processfor international buyers.
- Why Choose a Chinese Supplier – Cost Advantage, Services, and Buyer’s Checklist
Chinese manufacturers like Asconone offer a compelling value proposition: price levels 30–50% below European equivalents, without compromising quality. Lower labour and material costs, efficient supply chains, and short lead times (3–4 months for complete equipment) make China the preferred sourcing destination for cost‑conscious buyers.
Equally important are the comprehensive services:
- Technical consultation and custom engineering
- On‑site installation supervision and commissioning
- Operator training programmes
- Rapid spare‑parts supply (work rolls, bearings, hydraulic cylinders)
- Remote diagnostics and after‑sales support
By addressing these points, buyers can select a supplier that delivers not just equipment, but a long‑term partnership. With the right scale breaker in place, your push‑pull pickling line will consistently produce high‑quality, flat strip – maximising your return on investment for years to come.
