Introduction

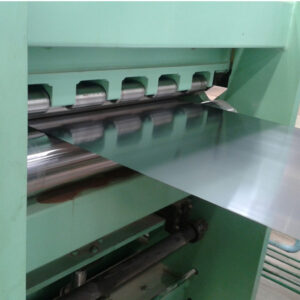

The tension leveler is a critical piece of equipment for ensuring superior flatness in metal strip, particularly in high-end applications for aluminum, copper, and high-strength steel. It works by applying a precise combination of tension and bending deformation to eliminate internal stresses and correct shape defects. This guide provides operational and maintenance engineers with a systematic, modern approach to troubleshooting and optimizing machine performance.

Core Principle: All adjustments should follow the fundamental rule of “Tension First, Bending Second.” First, ensure the elongation rate is within a suitable range, then proceed with fine-tuning the leveling roll system.

Issue 1: Single-Edge Wave (Wavy Edge)

Symptom: A continuous wavy defect appears on one side of the strip after it exits the leveler.
Root Cause & Modern Solution:The primary cause is often an imbalance in the compressive deformation across the strip width, typically due to a slight misalignment in the roll system.

Modern Correction Method: Tilt Adjustment

Advanced leveling machines feature a “Tilt” or “Skew” control function in their control system. To correct a single-edge wave, the operator can input a small tilt value (e.g., 0.05-0.20 mm) via the HMI (Human-Machine Interface) to deliberately raise the leveling unit on the side without the wave.
Technical Rationale: This action increases the bending strain and plastic elongation on the flat side, effectively balancing the differential fiber length across the strip and eliminating the wavy edge.

Next Step: If the tilt adjustment does not resolve the issue or requires an excessively large value, a mechanical inspection of the leveling and backup rolls for wear and parallel alignment is recommended.

Issue 2: Two-Edge Wave (Wavy Edges)

Symptom: Wavy defects appear on both edges of the strip simultaneously.

Systematic Diagnostic Approach:
Step 1: Diagnose the Elongation Setting

Elongation Too Low: Insufficient tension is applied to yield the material adequately. The corrective plastic elongation is minimal, leaving residual stresses that manifest as edge waves.
Elongation Too High: Excessive tension over-stretches the center of the strip. Upon tension release, the relatively “excess” material at the edges forms waves.
Modern Solution: Utilize the machine’s closed-loop elongation control system. Make fine, incremental adjustments to the elongation setpoint (e.g., ±0.05%) while monitoring the shape scanner’s feedback in real-time to find the optimal “sweet spot” for the specific strip.

Step 2: Evaluate Incoming Material Properties

If the problem occurs suddenly on a single coil while running standard parameters, the root cause likely lies with the incoming material:
Cross-Thickness Profile (e.g., Wedge): A consistent thickness variation from one edge to the other.
Inconsistent Material Properties: Improper annealing can result in a softer center and harder edges (or vice versa), leading to non-uniform deformation.
Modern Solution: Implement data integration with upstream processes (casting, hot rolling, annealing). Use high-precision profile and shape measurement systems at the entry section to pre-identify problematic coils and provide data for preset process parameters.

Important Note on Elongation & Bending Roll Penetration

While the original reference table provides a useful starting point, it must be treated as a dynamic guideline that is highly dependent on material properties, not a fixed formula.

Modern Parameter Setting Philosophy:

Material Diversity: Different alloys and tempers (e.g., 1100-O Aluminum vs. 6061-T6 Aluminum) have vastly different yield strengths and work-hardening rates. The same elongation and penetration settings cannot be universally applied.

Machine Specificity: The optimal parameters depend on the specific machine design, including roll diameter and spacing.

Dynamic & Zonal Control: Advanced levelers allow for individual penetration settings for different bending roll units (e.g., entry, intermediate, exit), enabling highly precise shape correction.

Optimization Best Practices:

Build a Process Database: Create a library of proven parameter sets for each material grade, temper, and thickness range you process regularly.
Consult Manufacturer Guidelines: Always prioritize the recommended parameters provided in your equipment supplier’s operational manual.

Apply Iterative Fine-Tuning:

Start with a lower elongation value and gradually increase it until shape improvement is observed.
Set a baseline elongation, then fine-tune the bending roll penetration. If the shape does not improve, make a small adjustment to the elongation and repeat.

(Enhanced Reference Table – Please note its limitations)

Note: This table is most applicable for mild, low-carbon steel. Significant adjustments are necessary for high-strength steel and non-ferrous metals like aluminum.

Conclusion

Optimizing a modern tension leveling machine is an art that combines classical mechanical principles with digital process control. The key to success lies in a systematic approach to root-cause analysis, leveraging the full capabilities of your machine’s automation, and building a continuously refined process database. We hope this guide empowers you to enhance your production efficiency and achieve exceptional strip flatness.
For further assistance with specific materials or complex shape issues, our global technical support team is always ready to assist you.
