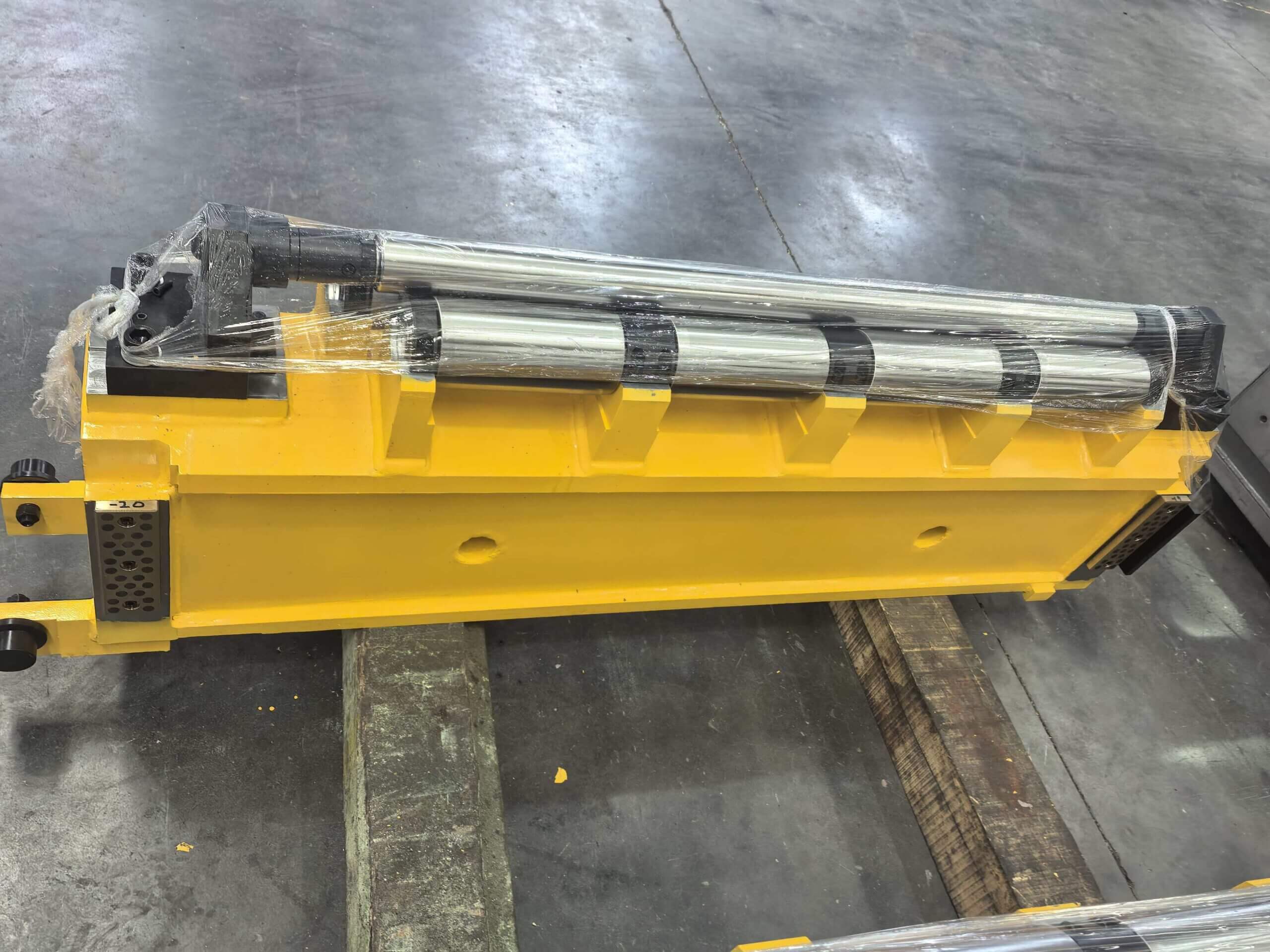

The 1660mm precision roll units for scale breaking machine are core critical components of scale-breaking equipment, widely applied to pickling and scale-breaking production lines for 0.5–12mm metal sheets and steel coils. They support work rolls and intermediate rolls, effectively alleviating roller bending and deformation during operation, and directly determine the flatness and finished product quality of steel strips. Our company provides customized precision and high-durability roll cassettes to ensure long-term continuous stable operation of production lines and steady output of premium metal strips.
1.Core Technical Advantages of 1660mm Precision Roll Units for Scale Breaking Machine
The roll cassettes are manufactured from high-strength alloy steel equivalent to DIN 1.2344, shaped via CNC precision machining and standardized robotic assembly, suited for wide-width heavy-load continuous production environments:
- Material Performance
The yield strength of the cassette steel is ≥355MPa, with a maximum bearing rolling pressure of 3000kN. Matched heavy-duty bearing units achieve a dynamic load capacity of 8 tons, featuring outstanding deformation resistance and adaptability to long-duration high-intensity operation.
- Process Advantages
Integral CNC precision finishing, mirror surface grinding for work rolls, built-in multi-channel cooling system and servo electric roll gap adjustment mechanism. The cassette housing is optimized through finite element simulation and conforms to ISO 9010 structural standards.
- Technical Indicators
Overall dimensional tolerance: ±0.05mm; work roll diameter tolerance: ±0.01mm; maximum full-load deformation ≤0.1mm; constant temperature operating range: 35–45℃; full-load design service life exceeds 20,000 hours.
- Functional Advantages
Excellent roll coaxiality, paired with a real-time thickness monitoring automatic feedback adjustment system to guarantee uniform sheet thickness and lower scrap generation. The modular quick-disassembly structure drastically cuts maintenance downtime and lifts equipment operation rate.
2.Industry Application Scenarios of 1660mm Precision Roll Units for Scale Breaking Machine
Compatible with diverse high-precision metal forming production lines:
- Metallurgy Industry: 1660mm cold rolling and pickling lines for scale removal and leveling of 0.5–12mm steel plates, profiles and special alloy sheets.
- Automobile Manufacturing: Leveling treatment for automotive body panels and structural steel sheets prior to pickling.
- Home Appliance Industry: Base material leveling for metal casings of refrigerators, washing machines and other household appliances.
- Construction Steel Structure: Production of steel plates and section steels with consistent flatness to secure building structural stability.
- High-end Manufacturing: High-speed scale breaking of special alloy thin sheets for aerospace and electronics sectors.
3.Product Innovation & Design Highlights of 1660mm Precision Roll Units for Scale Breaking Machine
Specially optimized and upgraded for 1660mm wide-width scale-breaking production lines:
- Modular Quick-Disassembly Structure
Standard universal quick-disassembly interfaces; full roll set replacement takes merely 15–30 minutes, reducing maintenance downtime by 60%–70% compared with conventional structures.
- Integrated Multi-Channel Constant Temperature Cooling System
Fixed-point spray circulation temperature control restrains roller thermal deformation, extending service life by 30%–40% against ordinary roll cassettes.
- Fully Automatic Servo Precision Adjustment
Servo electric roll gap adjustment positioning accuracy reaches ±0.05mm, matched with PLC human-machine interface for one-click rapid switching of process parameters to manufacture sheets of different specifications.
3.Core Advantages of Purchasing 1660mm Precision Roll Units for Scale Breaking Machine
- Strictly produced in compliance with ISO 9010 and ASTM A568 standards; finite-element optimized cassette housing delivers superior rigidity for wide-width rolling, with overall performance exceeding regular mainstream products in the industry.
- Custom non-standard specifications are available, applicable to sheets ranging 0.5–12mm in thickness; capable of processing flat plates, U-channels, I-beams and other special-shaped profiles with convenient parameter adjustment for product changeovers.
- Precise thickness and flatness control cuts production scrap rate by 15%–20% and boosts overall line throughput by 25%–30%. It reduces long-term raw material loss and maintenance costs for higher investment return.
4.Summary
Numerous enterprises engaged in 1660mm cold rolling pickling and automotive sheet production have adopted these 1660mm precision Roll Units for Scale Breaking Machine, achieving drastically shortened equipment maintenance hours, greatly improved finished sheet precision and surface quality, reduced scrap loss and effective growth of overall production capacity.
The 1660mm precision Roll Units for Scale Breaking Machine act as core supporting spare parts for quality upgrading and cost reduction on wide cold rolling pickling production lines.
For customized dimensions, technical parameter sheets and bulk purchase quotations, please feel free to contact us for consultation.
